HES 8000C-630 Complete Pac Electric Strikes 8000 Strike Body with Faceplates

HES 8000C 630 Complete Electric Strike: The H.E.S. 8000C 630 Is a Complete Electric Strike Designed for Easy Installation of Cylindrical Locks. Finish: 630 (Satin Stainless Steel). Includes: 8000 Strike Body & Two (2) Faceplates (801-Option & 801A-Option).

HES 8000C-630 Series Complete Pac Electric Strike

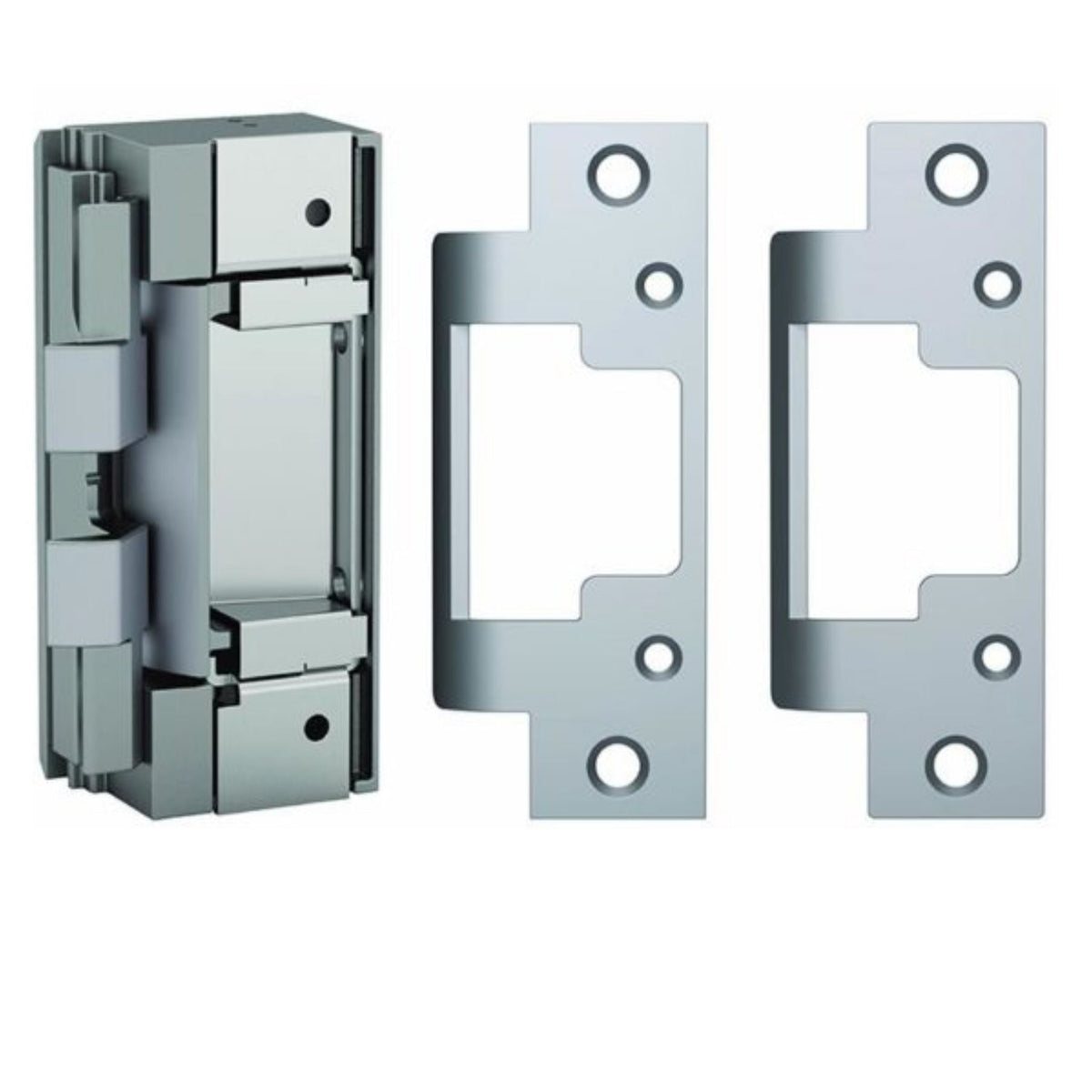

The H.E.S. 8000C 630 Satin Stainless Steel Strike Is Designed for Easy Installation With No Cutting of the Door Frame Required. The HES 8000C-630 Strike Has a Concealed Design, Vertical Adjustability and Works With Cylindrical Locksets With a 5/8" Throw Latchbolt. The 8000C 630 Complete Electric Strike Includes a HES 8000 Strike Body, the 801-Option Faceplate for Cylindrical Locks in ANSI Metal Jambs and the 801A-Option Faceplate for Cylindrical Locks or Spring Latches in Aluminum Frames.

HES 8000C 630 Complete Electric Strike

• No Cutting of the Face of the Frame
• Vertical Adjustability to Accommodate Door Sag & Misalignment
• Tamper Resistant

• Static Strength 1,500 lbs.
• Dynamic Strength 70 ft-lbs.
• Endurance 500,000 Cycles
• Frame: Metal or Wood
• Field Selectable: Fail Secure or Fail Safe
• Dual Voltage: 12 or 24 VDC/VAC
• Finish: Satin Stainless Steel (630)
• Non-Handed

• Internally Mounted Solenoid
• Accommodates 1/2" to 5/8" Cylindrical Latchbolts (5/8" with 1/8" Door Gap)
• Strike Body Depth 1-1/16"
• Strike Body Width Decreased to 1-7/16" to Increase Frame Compatibility

• Five Year Limited Warranty
