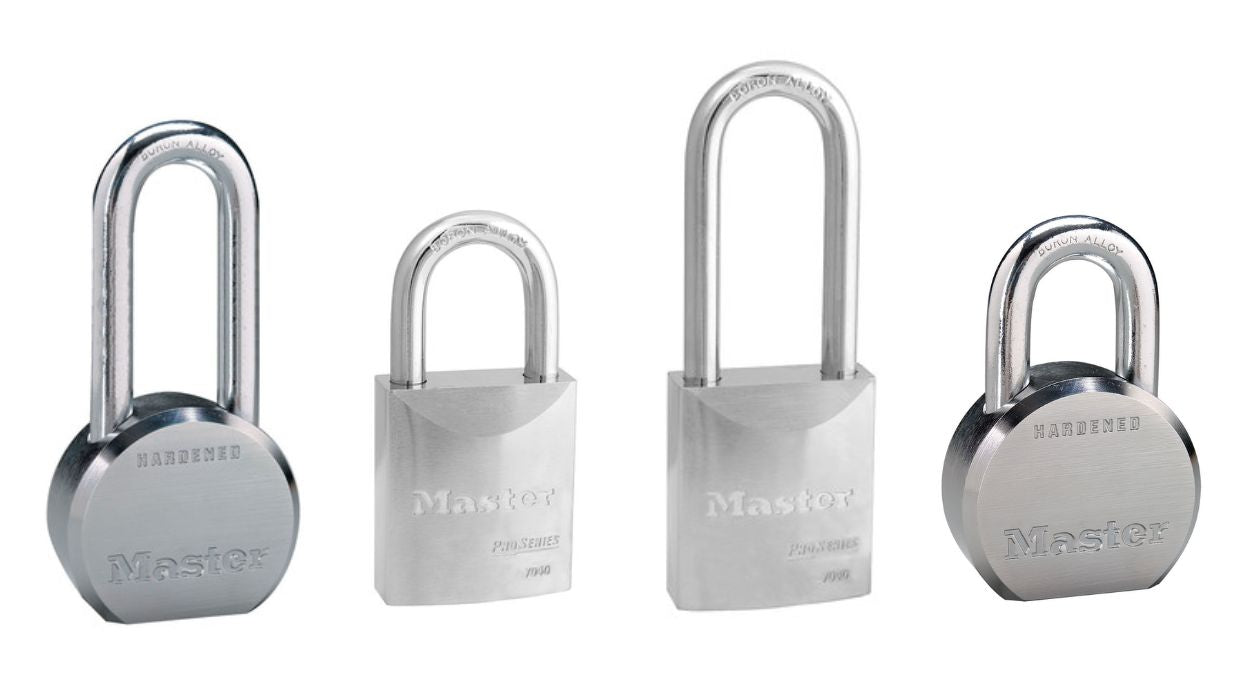

Our Master Lock ProSeries Steel Section Features the Heavy Case Hardened Pro Series Steel Locks Nos. 6230 & 7040 Matched to Existing Key Numbers on Master Lock's 5-Pin W6000 Keyway.

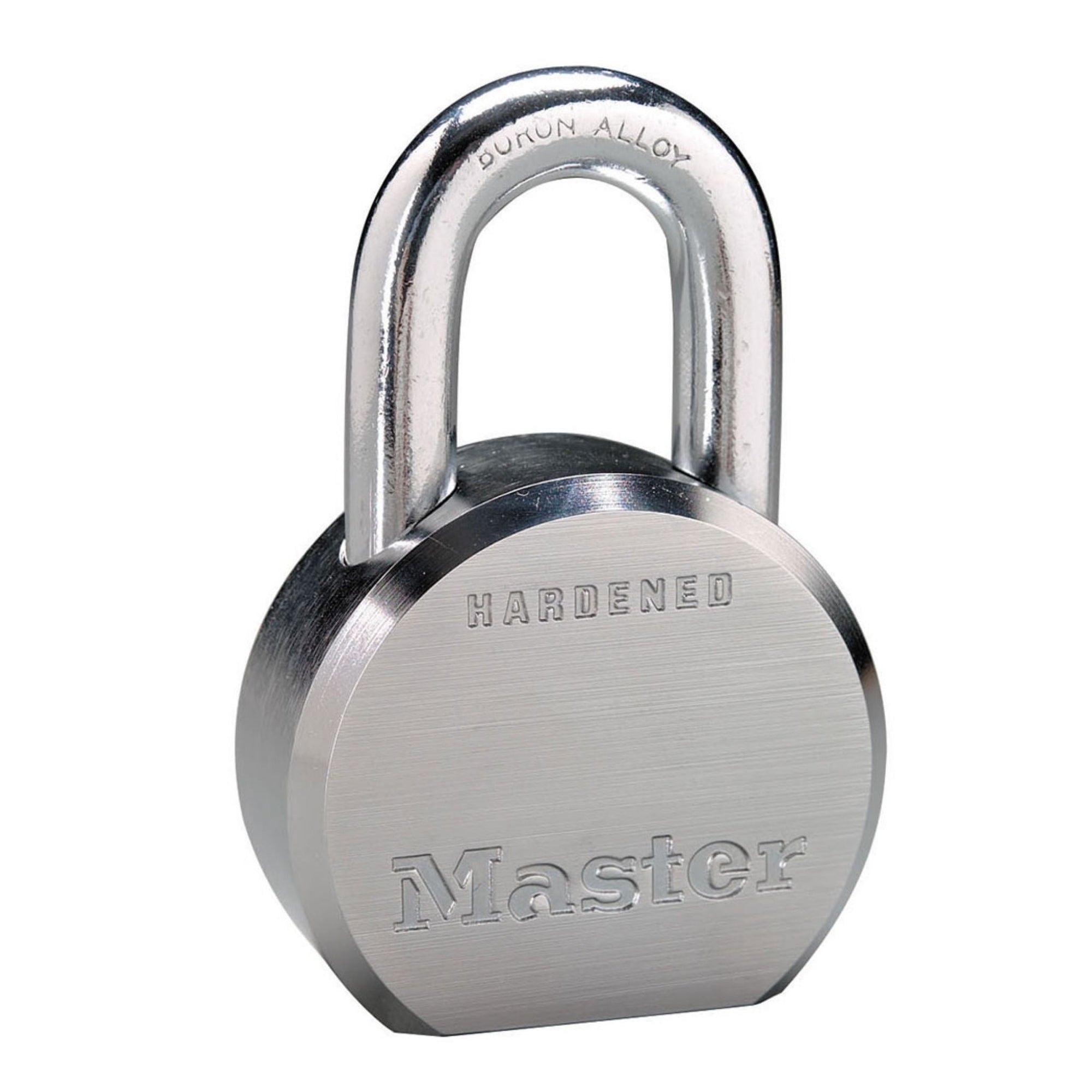

Q: What Is The Width of the No. 6230KA Series Padlocks?

A: The No. 6230 Series Padlocks Are 2-1/2” (64mm) Wide.

Q: What Is The Width of the No. 7040KA Series Steel Padlocks?

A: The No. 7040 Series Steel Padlocks Are 1-3/4” (44mm) Wide.

Q: What Size Shackles Are Available for the No. 6230KA Series Locks?

A: The No. 6230 Series Locks Are Available In Two (2) Shackle Sizes:

    - Standard: 1-1/8” (29mm); Long: 2” (51mm).

Q: What Size Shackles Are Available for the No. 7040KA Steel Locks?

A: The No. 7040 Series Locks Are Available In Three (3) Shackle Sizes:

    - Standard: 1-3/16” (30mm); Long: 1-9/16” (40mm); Extended: 2-7/16” (61mm).

Q: What Is The Key Range of the Nos. 7040 & 6230 Series Locks?

A:The 7040 and 6230 Series Padlocks Are Both Available On the W6000 6-Pin Keyway, Which Covers Key Numbers 10G001 to 34G157.

Q: Can The 6230KA & 7040KA Padlocks Accept Different Cylinders?

A:Yes, the Rekeyable 7040 and 6230 Padlocks Can Also Accept The Full Range Of Key Numbers On The W1 Cylinder (4-Pin), W27 Cylinder (5-Pin) and W7000 Cylinder (6-Pin).

Q: Are All 6230 Series Locks Available On The W6000 Key Range?

A: Both Sizes of the No. 6230 Series Locks Are Available Matched to All Existing W6000 Key Numbers:

    - 6230KA (Standard): 1-1/16" Shackle

    - 6230KALH (LH): 2-Inch Shackle Length

Q: Are All 7040 Series Locks Available On The W6000 Key Range?

A: Yes, All Three Sizes of the No. 7040 Series Locks Are Available Matched to All Existing W6000 Key Numbers:

    - 7040KA (Standard): 1-3/16"

    - 7040KALF (LF): 1-9/16" Shackle

    - 7040KALJ (LJ): 2-7/16" Shackle Height

Q: What Cylinder Comes With The ProSeries Steel Locks 6230, 7040 & 6850?

A: The 6230KA, 6230KALH, 7040KA, 7040KALF & 7040KALJ Padlocks Are On the Master Lock 5-Pin W6000 Keyway, Which Ranges From 10G001 Through 34G157, Creating Over 23,000+ Key Options.

Q: Are The 6230 and 7040 Steel Locks Available With Non-Removable Key?

A: Yes, All Pro Series Padlocks – Including the Solid Steel Locks 6230 and 7040 – Are Available With “Non-Removable Key” Which Does Not Allow The Key To Be Taken Out Once The Padlock Is Engaged; The Key Stays In the Padlock Whenever It Is Open, Adding Additional Safety, Protecting Again Lost Keys and Accidentally Leaving The Opening Unlocked.

Q: Are No. 6230 Series Locks Available Other Than Keyed Alike?

A: Yes, In Addition to Keyed Alike (KA), the No. 6230 Series Locks Can Also Be Ordered Keyed Different and Master Keyed:

    - 6230KD: 1-1/8" Shackle

    - 6230MK: 1-1/8" Shackle

    - 6230LH: 2-Inch Shackle

    - 6230MKLH: 2-Inch Shackle

Q: Are No. 7040 Series Locks Available Other Than Keyed Alike?

A: Yes, In Addition to Keyed Alike (KA), the No. 7040 Series Locks Can Also Be Ordered Keyed Different and Master Keyed:

    - 7040KD: 1-3/16" Shackle

    - 7040MK: 1-3/16" Shackle

    - 7040LF: 1-9/16" Shackle

    - 7040MKLF: 1-9/16" Shackle

    - 7040LJ: 2-7/16" Shackle

    - 7040MKLJ: 2-7/16" Shackle
