HES 5000C Complete Pac Electric Strike Includes Compact 5000 Strike Body and Two Faceplates (501 & 501A) for Cylindrical Locksets - The Lock Source

HES 5000C Complete Pac for Latchbolt with Faceplates

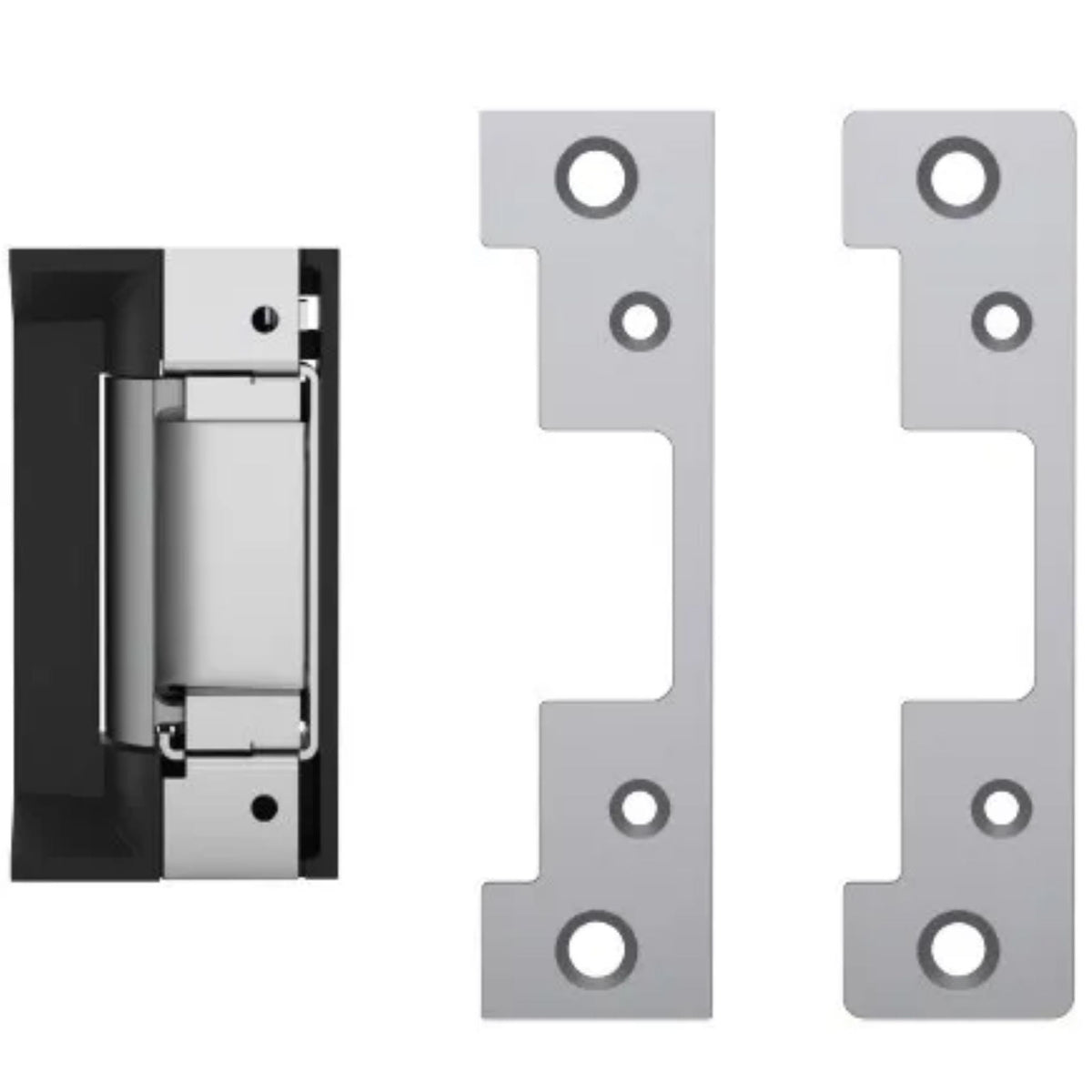

The H.E.S. 5000C Conveniently Pairs the Reliability of HES Electric Strikes With the Flexibility of Multiple Faceplates Into a Single Simple Package. The 5000C Includes a 5000 Strike Body, the 501-Option Faceplate for Cylindrical Locks in ANSI Metal Jambs and 501A Faceplate for Cylindrical Locksets or Spring Latches in Aluminum Frames.

The Grade 1, Low Profile Strike with Faceplates

Tamper Resistant
Static Strength 1,500 lbs.
Dynamic Strength 70 ft-lbs.
Endurance 500,000 Cycles
Field Selectable: Fail Secure or Fail Safe
Dual Voltage 12 or 24 VDC/VAC
Non-Handed
Internally Mounted Solenoid
Accommodates 1/2" - 5/8" Latchbolt (5/8" with 1/8" Door Gap)
Strike Body Depth 1-1/16"
Plug-In Connector
Trim Enhancer Included
Five Year Limited Warranty

HES 5000C Series Electric Strike

Frame application

Metal
Wood

Electrical

Dual Voltage
- DC: Continuous Duty
- AC: Intermittent Duty Only
Dual Voltage:
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC

Certifications

UL 1034 burglary-resistant listed
UL 294 listed
ANSI/BHMA A156.31, Grade 1
RoHS Compliant

HES 5000C Series Complete Pac Electric Strike with Faceplates

$194.00 $213.00 You save: 8% ($19.00)

SKU-HES-5000C-630

HES 5000C Electric Strike: The H.E.S. 5000C Electric Strike Has a Compact, Low Profile Design for Easy Install. Finish: 630 (Satin Stainless Steel). Includes:5000 Strike Body & 2 Faceplates (501, 501A). Bolt Monitor: Standard (5000C) or Latchbolt Monitor (LBM).

HES 5000C Complete Pac for Latchbolt with Faceplates

HES 5000C Series Electric Strike

HES 5000C Series Complete Pac Electric Strike with Faceplates
