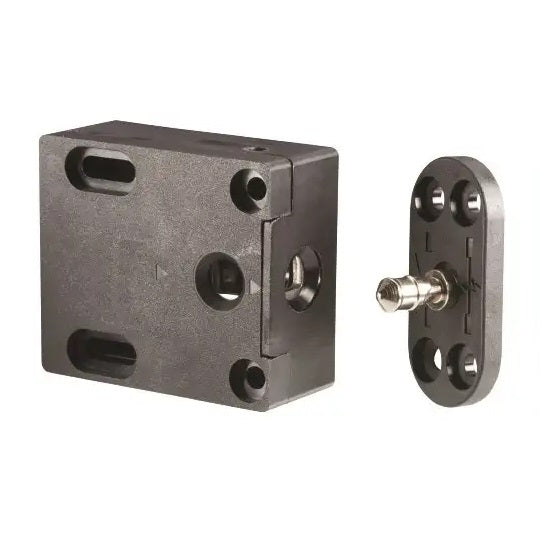

The HES 610 cabinet lock is a versatile, compact and cost effective cabinet lock for wood or glass cabinets. The 610 cabinet lock can be triggered by a simple relay as part of an access control system or with a standalone keypad. The HES 610 is available in monitored and unmonitored versions. Typical uses include retail and office space.

Features

  • Fail safe / fail secure (field selectable)
  • Holding force: 200 lbs.
  • Compact design filts most drawers and cabinets
  • Versatile installation either at the side or front of cabinets
Specification Data
  • 12/24 VAC/VDC field selectable
  • Monitoried contact rating 25V / 1A
  • 12 - 24 VDC +/- 10%
  • 12VDC 260mA or 24VDC 130mA
  • 12VAC 140mA or 24VAC 70mA

    HES 610 Cabinet Lock

    SKU-HE610

    HES 610 Cabinet Lock: The versatile, compact, cost effective cabinet lock to secure drawers or doors.

    The HES 9400 Surface Mounted Electric Strike is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.
