HES 660-LBSM-Preload Electronic Cabinet Lock With Locked State Monitoring & Pre-Load

HES 660-LBSM-Preload Electronic Cabinet Lock: The H.E.S. 660 LBSM with Pre-Load Series Cabinet Locks Are Flexible & Strong With Over 1000 LBS Holding Force for Lockers, Cabinets, Drawers and Display Cases. Monitoring: Includes "Locked State" Monitoring (LBSM) & Pre Load Up to 15 Lbs. Choose Voltage: 12VDC or 24VDC.

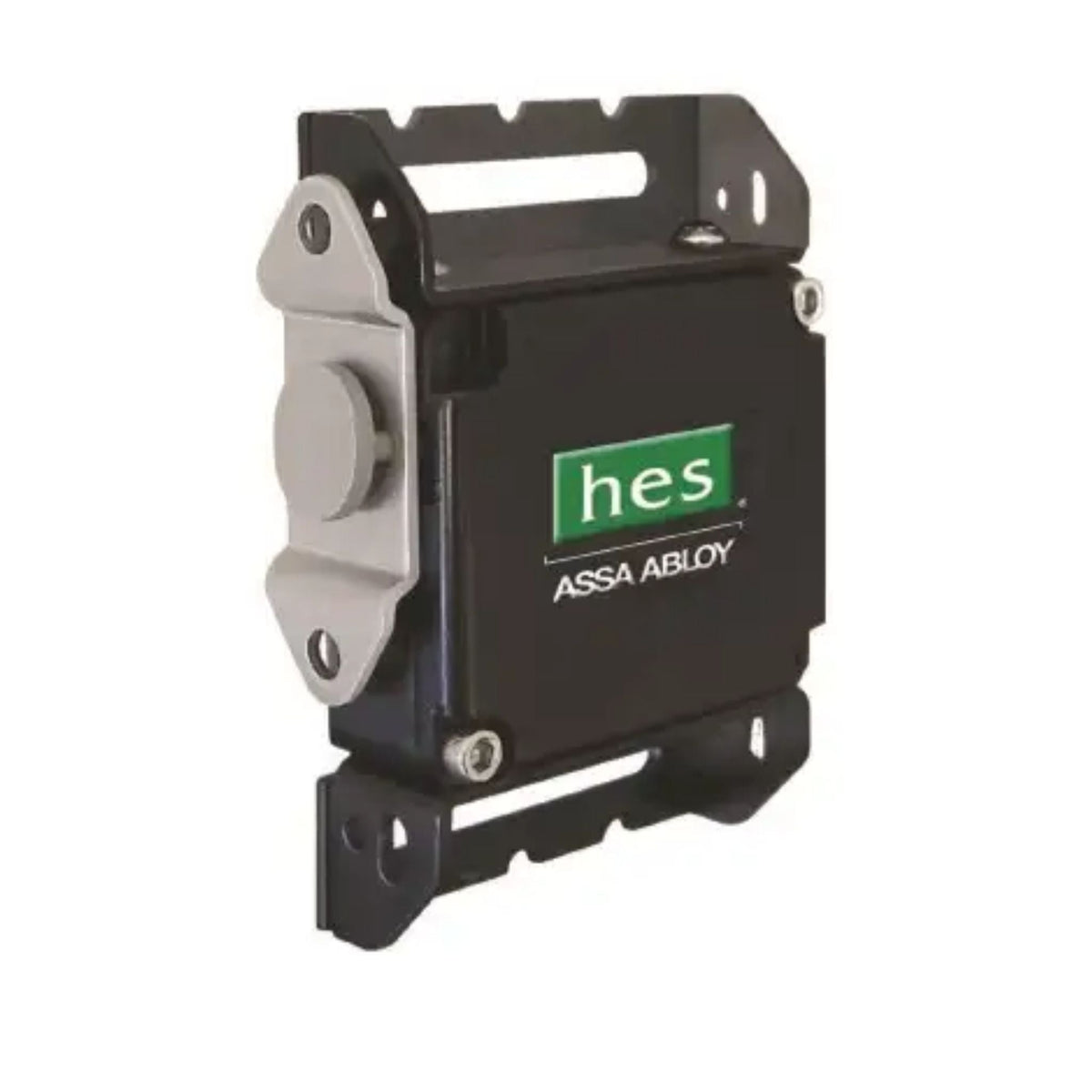

660-LBSM-Preload Cabinet Lock with Locked State Monitoring

The 660-LBSM-Preload Multi-Purpose Locking Solution Brings Electronic Access Control to Your Cabinets. The 660 LBSM With Pre Load Electromechanical Lock Has Over 1000 LBS Holding Force, Ideal for Corporate & Government Applications.

Electrical

• Available in either 12 or 24 VDC
• 12 - 24 VDC +/- 10%
• 240 mA @ 12VDC continuous duty
• 120 mA @ 24VDC continuous duty
• 700 mA @ 12VDC (pre-load option)
• 350 mA @ 24VDC (pre-load option)

Standard Features

• Static strength 1,000 lbs.
• Dynamic strength over 100 ft-lbs.
• Endurance 1,000,000 cycles
• Available in either 12 or 24VDC
• All metal construction
• Adjustable mounting brackets with final lockdown feature
• 6 foot cable lead
• RoHS compliant

• 3 year limited warranty
