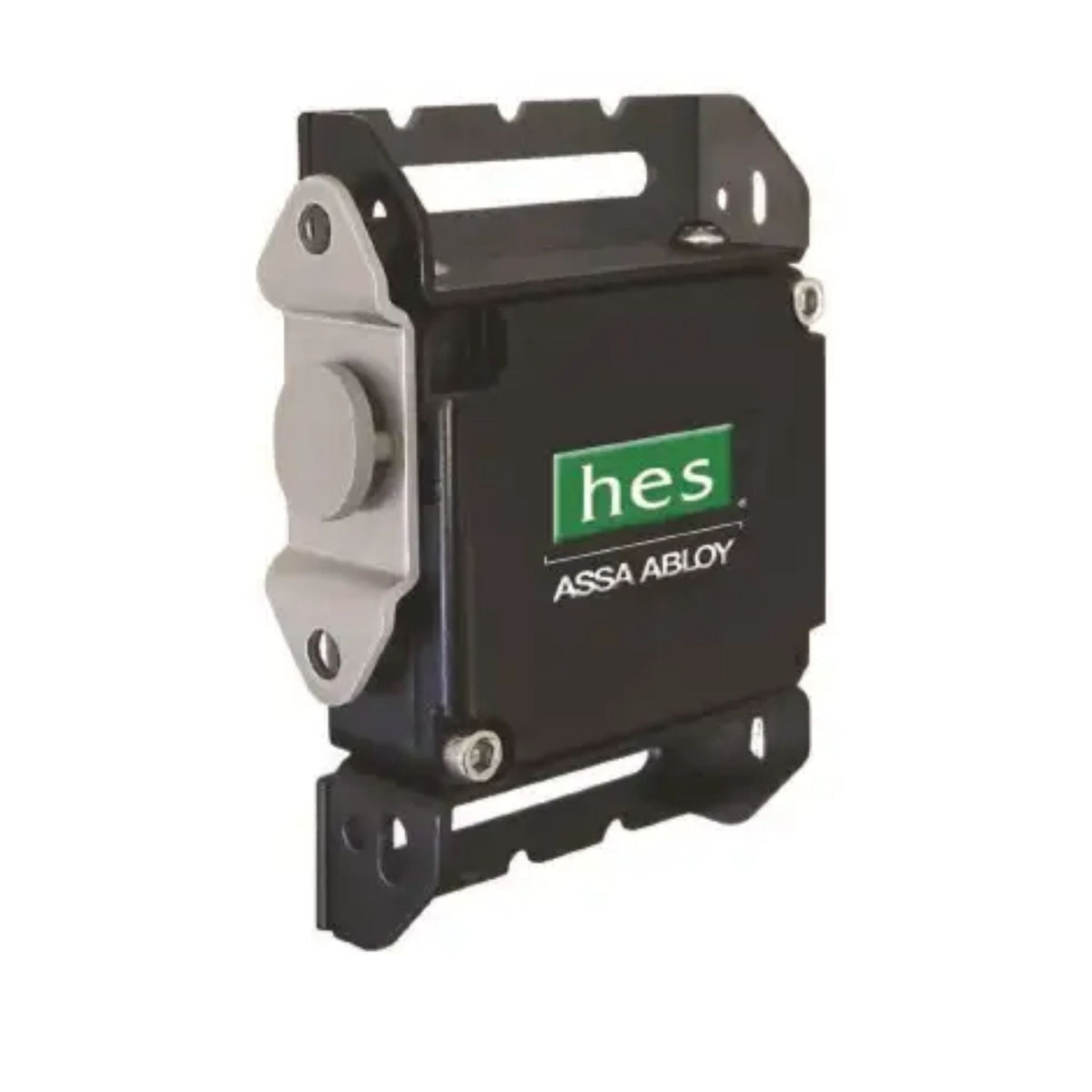

HES 660-Preload Electromechanical Cabinet Lock (Preload Up to 15 LBS)

HES 660-Preload Electronic Cabinet Lock: The H.E.S. 660 Preload Electromechanical Series Cabinet Locks Are Flexible & Strong With Over 1000 LBS Holding Force for Lockers, Cabinets, Drawers and Display Cases. Choose Voltage: 12VDC or 24VDC.

660-Preload Cabinet Lock with Locked State Monitoring

The 660-Preload Multi-Purpose Locking Solution Brings Electronic Access Control to Your Cabinets and Drawers. The 660 Pre-Load Electro-Mechanical Lock Has Over 1000 LBS Holding Force, Ideal for Corporate and Government Applications.

Electrical

• Available in either 12 or 24 VDC
• 12 - 24 VDC +/- 10%
• 240 mA @ 12VDC continuous duty
• 120 mA @ 24VDC continuous duty
• 700 mA @ 12VDC (pre-load option)
• 350 mA @ 24VDC (pre-load option)

Standard Features

• Static strength 1,000 lbs.
• Dynamic strength over 100 ft-lbs.
• Endurance 1,000,000 cycles
• Available in either 12 or 24VDC
• All metal construction
• Adjustable mounting brackets with final lockdown feature
• 6 foot cable lead
• Patents: 8,562,040; 7,878,560
• RoHS compliant
• 3 year limited warranty
