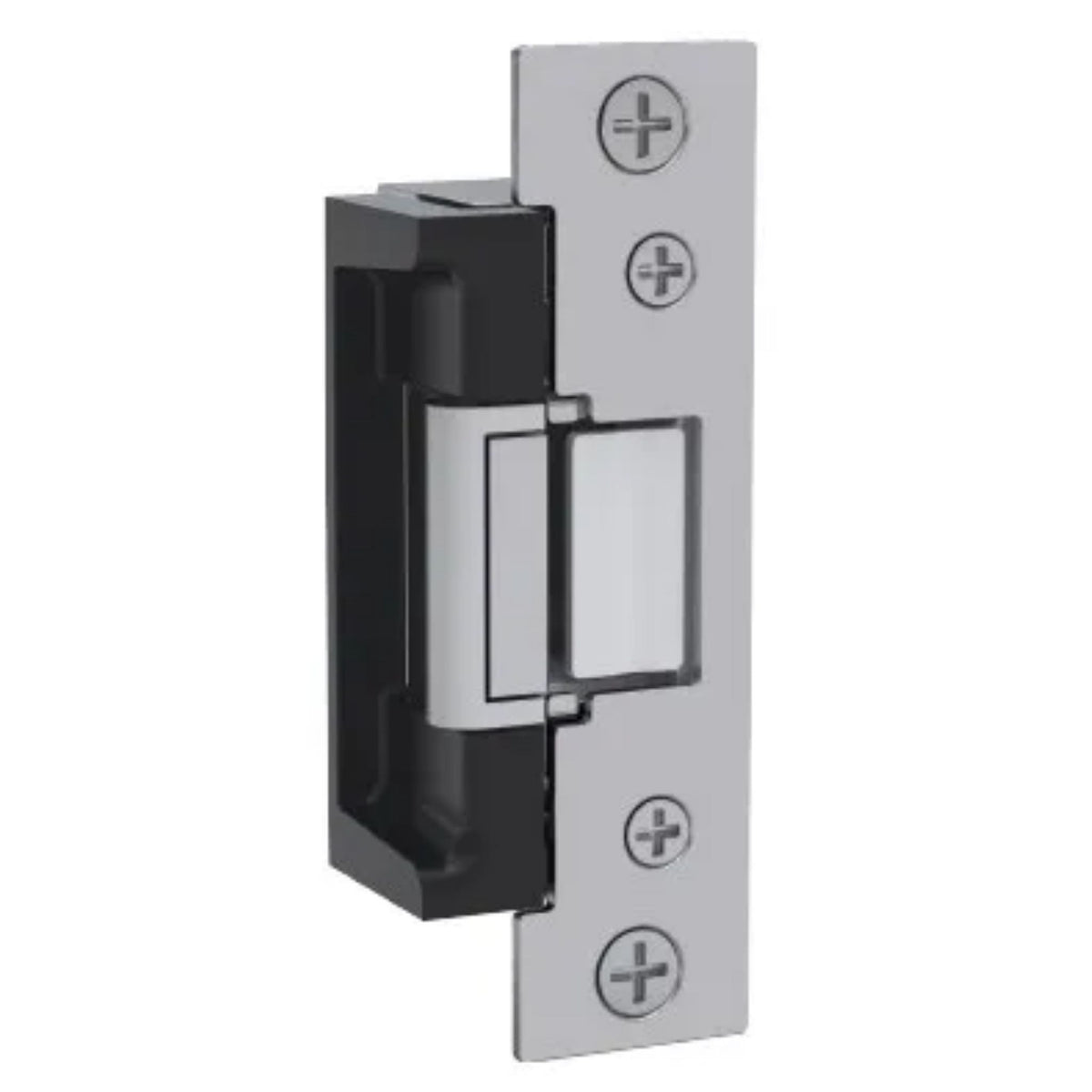

The HES 7000 Series Electric Strike preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air conditioning pressure, changes in the weather, warped doors or doors with weather stripping that may often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Features

• Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs. (791 and 792 options)
• Dynamic strength 70 ft-lbs. (791 and 792 options)
• Static strength 1,000 lbs. (783S, 786S and 789S options)
• Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
• Dual voltage 12 or 24 VDC/VAC
• Endurance 500,000 cycles
• Field selectable fail secure/fail safe
• Accommodates pre-load (fail secure only)
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Strike body depth 1-11/16"
• Plug-in connector
• Trim enhancer (791 and 792 options)
• Pocket adapter (786S and 789S options)
• Frame Application: Metal, Wood & Aluminum
• Finish: Satin Stainless Steel (630) finish

• ANSI/BHMA A156.31, Grade 1 (791 & 792 options)
• ANSI/BHMA A156.31, Grade 2 (783S, 786S & 789S options)
• UL 1034 burglary-resistant listed
• UL 294 listed
• Dual voltage 12/24 VDC
• 450 mA at 12 VDC/250 mA at 24 VDC
• PoE friendly
