The HES 7000C Series Electric Strike preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air conditioning pressure, changes in the weather, warped doors or doors with weather stripping that may often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Features

  • Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs. (791 and 792 options)
  • Dynamic strength 70 ft-lbs. (791 and 792 options)
  • Static strength 1,000 lbs. (783S, 786S and 789S options)
  • Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
  • Dual voltage 12 or 24 VDC/VAC
  • Endurance 500,000 cycles
  • Field selectable fail secure/fail safe
  • Accommodates pre-load (fail secure only)
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer (791 and 792 options)
  • Pocket adapter (786S and 789S options)
  • Frame Application: Metal, Wood & Aluminum
  • Finish: Satin Stainless Steel (630) finish
Specification Data
  • ANSI/BHMA A156.31, Grade 1 (791 & 792 options)
  • ANSI/BHMA A156.31, Grade 2 (783S, 786S & 789S options)
  • UL 1034 burglary-resistant listed
  • UL 294 listed
  • Dual voltage 12/24 VDC
  • 450 mA at 12 VDC/250 mA at 24 VDC
  • PoE friendly

    HES 7000C-630-LBM Electric Strike, Complete Pac, Satin Stainless Steel

    SKU-HES-7000C-630-LBM

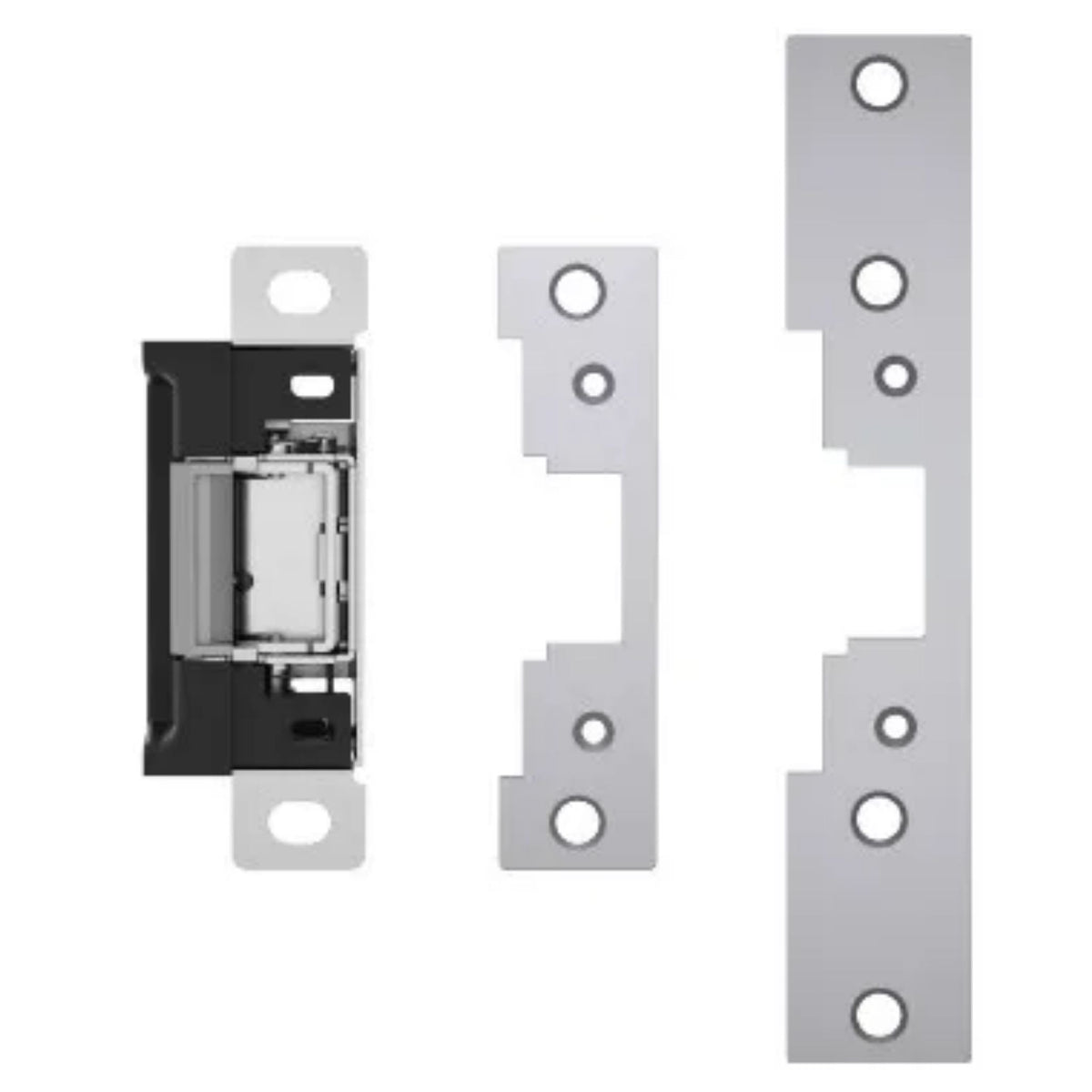

    HES 7000C-630-LBM Electric Strike: The 7000C works with cylindrical latchbolts up to 5/8" throw and rim exit devices up to a 3/4" throw. Included in the box are a 7000 strike bodyand 2 faceplates (791 and 792).

    The HES 7000C Electric Strike offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation.

    The Dual, Preload Solution for Cylindrical Latchbolts and Rim Exit Devices!
