Features

  • Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Dual voltage 12 or 24 VDC/VAC
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Accommodates pre-load (fail secure only)
  • Keeper shims for horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer
  • Frame Application: Metal
  • Finish: Bright Brass (605) finish
Specification Data
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed
  • UL 10C fire rated, 3-hour (fail secure only)
  • CAN/ULC-S104 fire door conformant
  • NFPA-252 fire door compliant
  • ASTM-E152 fire door compliant
  • UL 294 listed
  • Dual voltage 12/24 VDC
  • 450 mA at 12 VDC/250 mA at 24 VDC
  • PoE friendly

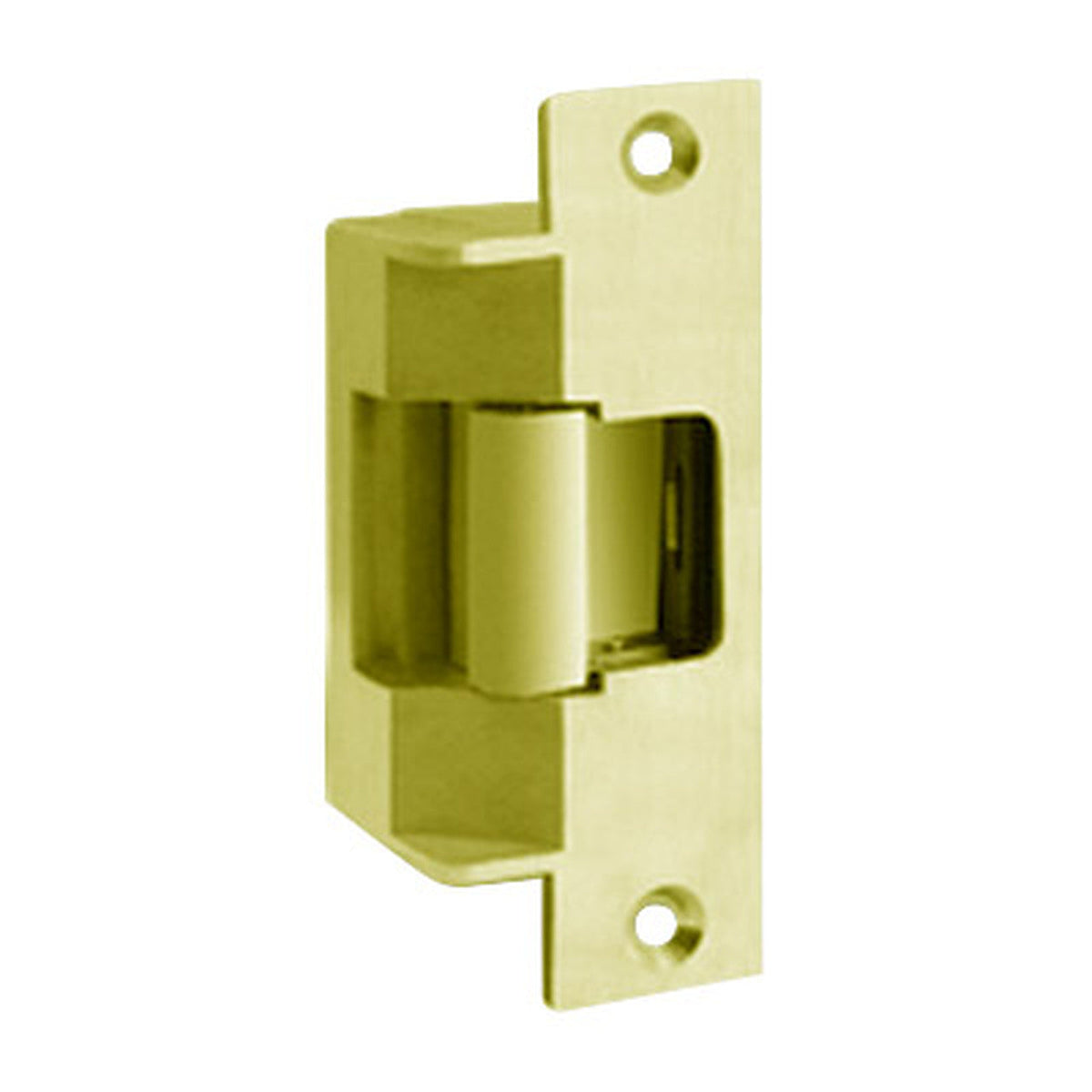

    HES 7501-605-LBM Electric Strike, Latchbolt Monitor, Bright Brass

    SKU-HES-7501-605-LBM

    HES 7501-605 Electric Strike: The 7501 works with cylindrical locksets up to a 3/4" throw latchbolt

    The HES 7501 Electric Strike is ideal for fire rated applications with preload conditions caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire rated latchbolts up to 3/4" throw.

    The Grade 1, Fire-Rated, Preload Solution!
