HES 7501 Series Electric Strike

The HES 7501 Series Is a Complete, Pre-Assembled Electric Strike for Use With Cylindrical Locks With Up to 3/4" Throw. The 7501 Strike Is Designed for Fire Rated Applications With Pre-Load Conditions Caused By a Warped or Misaligned Door, Weather Stripping, a Smoke Seal or Any Other Condition that Could Cause Door Bind. The Heavy Duty 7501 Strike Accommodates Fire-Rated Latchbolts up to 3/4" Throw.

7501 Series Electric Strike Features

• Installs in Metal or Wood Frames
• Field Selectable: Fail Secure or Fail Safe

• Dual Voltage: 12VDC or 24VDC
• Accommodates Pre-Load (Fail Secure Only)
• Stainless Steel Construction

• Tamper-Resistant
• Static Strength 1,500 Lbs.

• Dynamic Strength 70 ft-Lbs.
• Endurance 500,000 Cycles
• Keeper Shims for Horizontal Adjustment

• Non-Handed
• Strike Body Depth 1-11/16"
• Plug-In Connector
• Trim Enhancer
• Internally Mounted Solenoid

• Accommodates up to 3/4" Pullman Latch
• Five-Year Limited Warranty


Choose Bolt Monitor

• 7501: Standard (No Monitor)
• 7501-LBM: Latchbolt Monitor (LBM)

Choose Finish

• 630 - Satin Stainless Steel

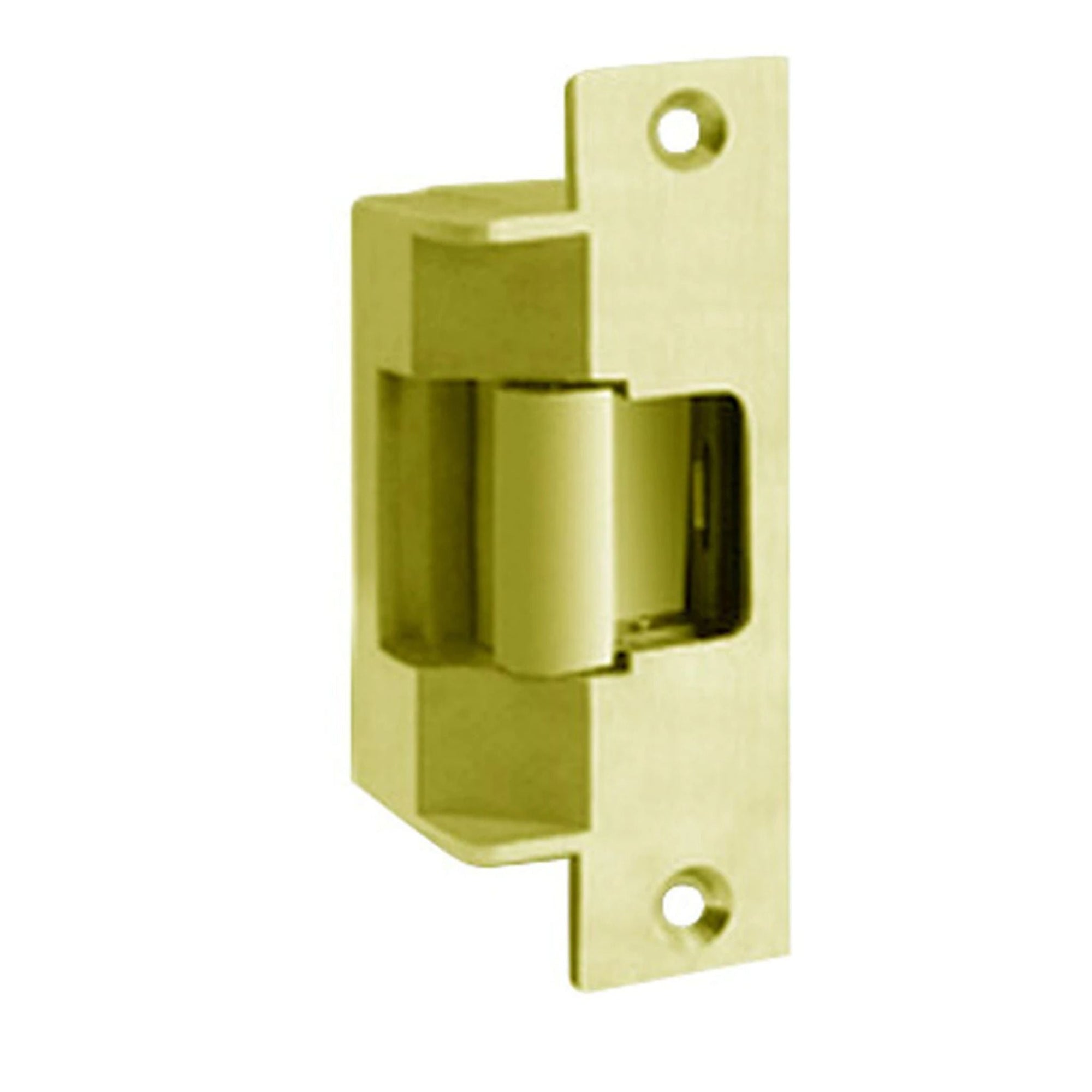

• 605 - Bright Brass

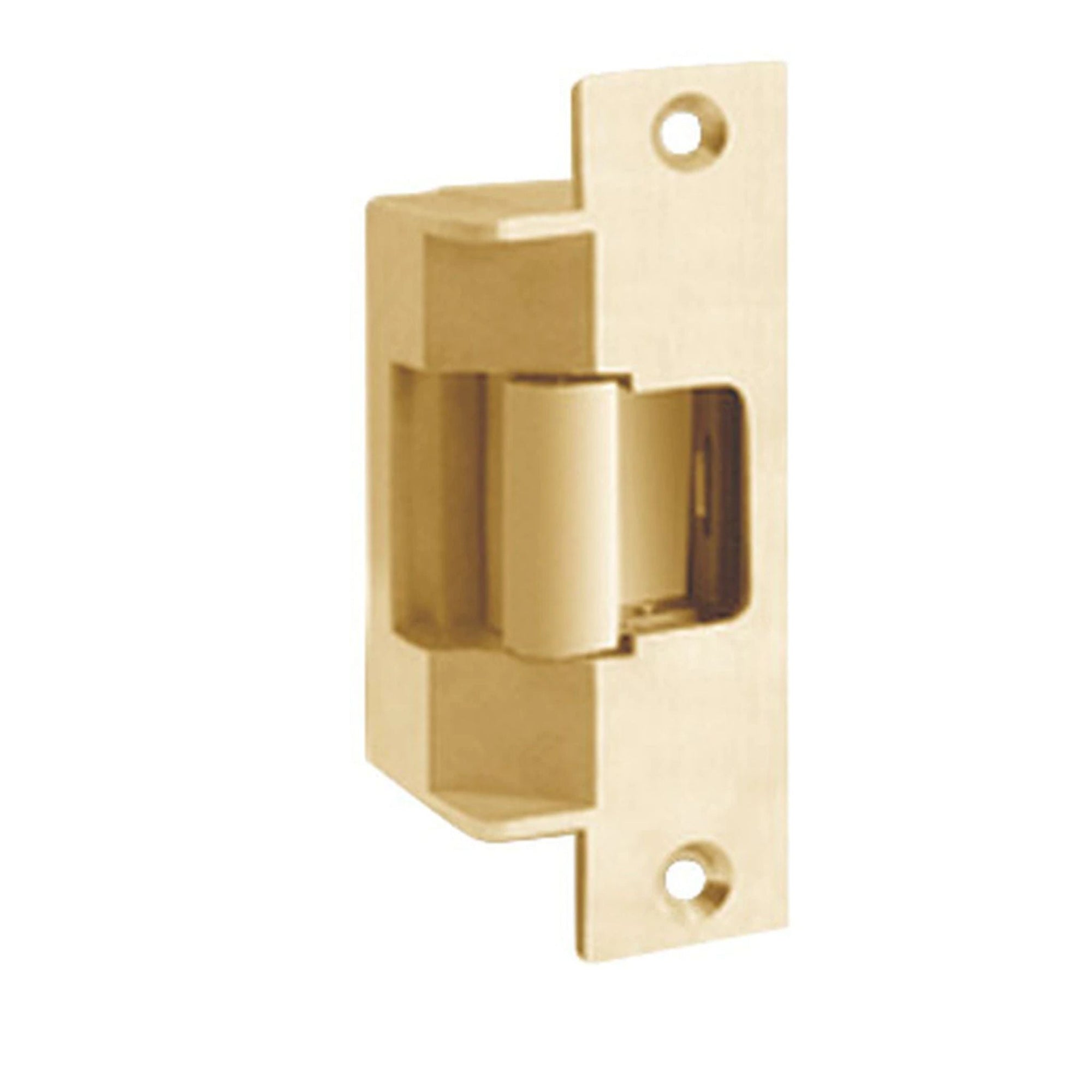

• 606 - Satin Brass

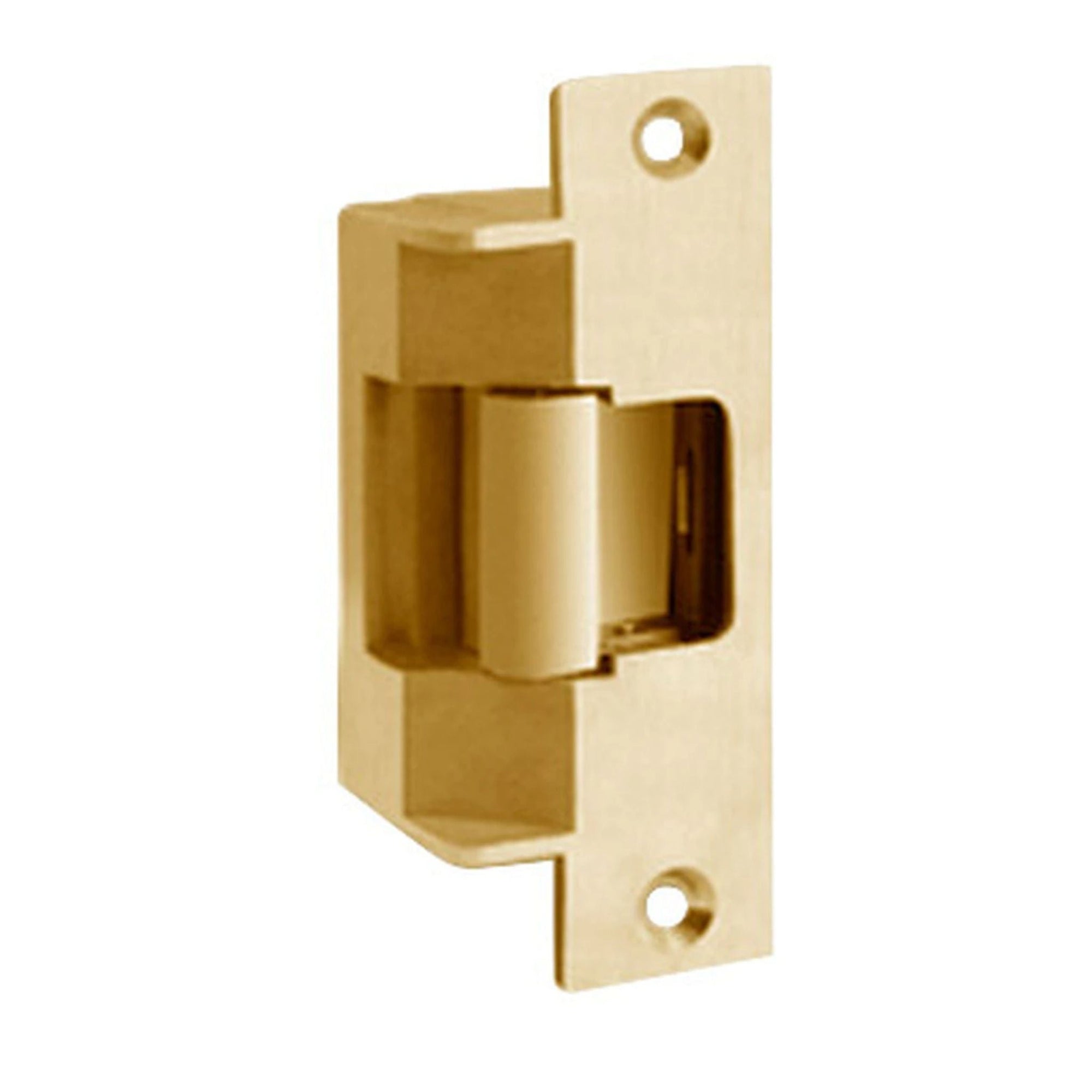

• 612 - Satin Bronze

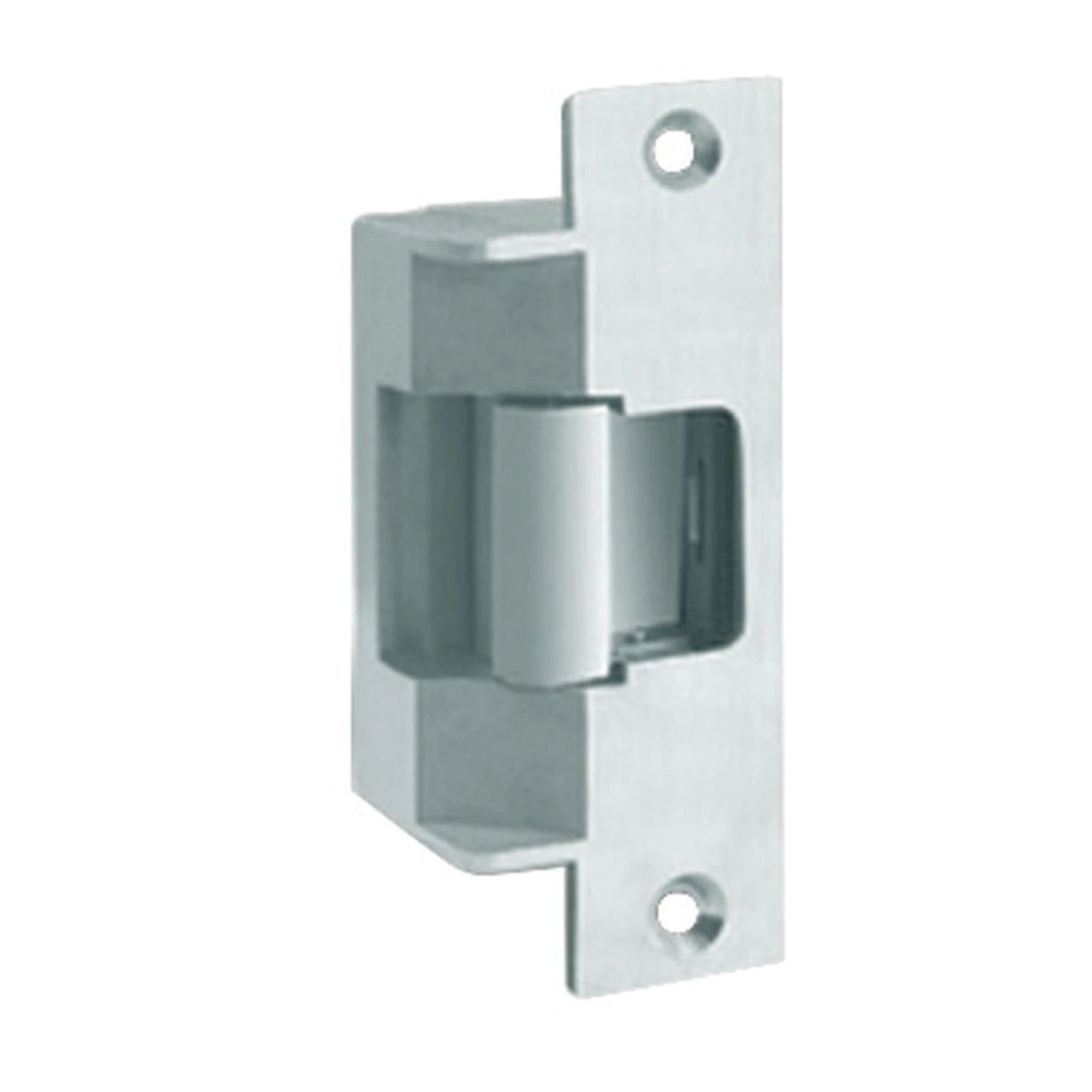

• 629 - Bright Stainless Steel
