The HES 9400 Surface Mounted Electric Strike ships with a 1/8" spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation, and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

Features

  • Installs in metal and wood frames
  • Wood screws not provided
  • One 1/8" [3.2mm] spacer plate included
  • Decorative cover for sleek look
  • Stainless steel construction
  • Tamper-resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustability
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 1/2" [12.7mm] Pullman latch
  • Frame Application: Metal & Wood
  • Finish: Satin Brass (606) finish
Specification Data
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL294 listed
  • UL305 listed
  • RoHS compliant
  • Dual voltage 12/24VDC
  • 450 mA at 12VDC/250 mA at 24VDC

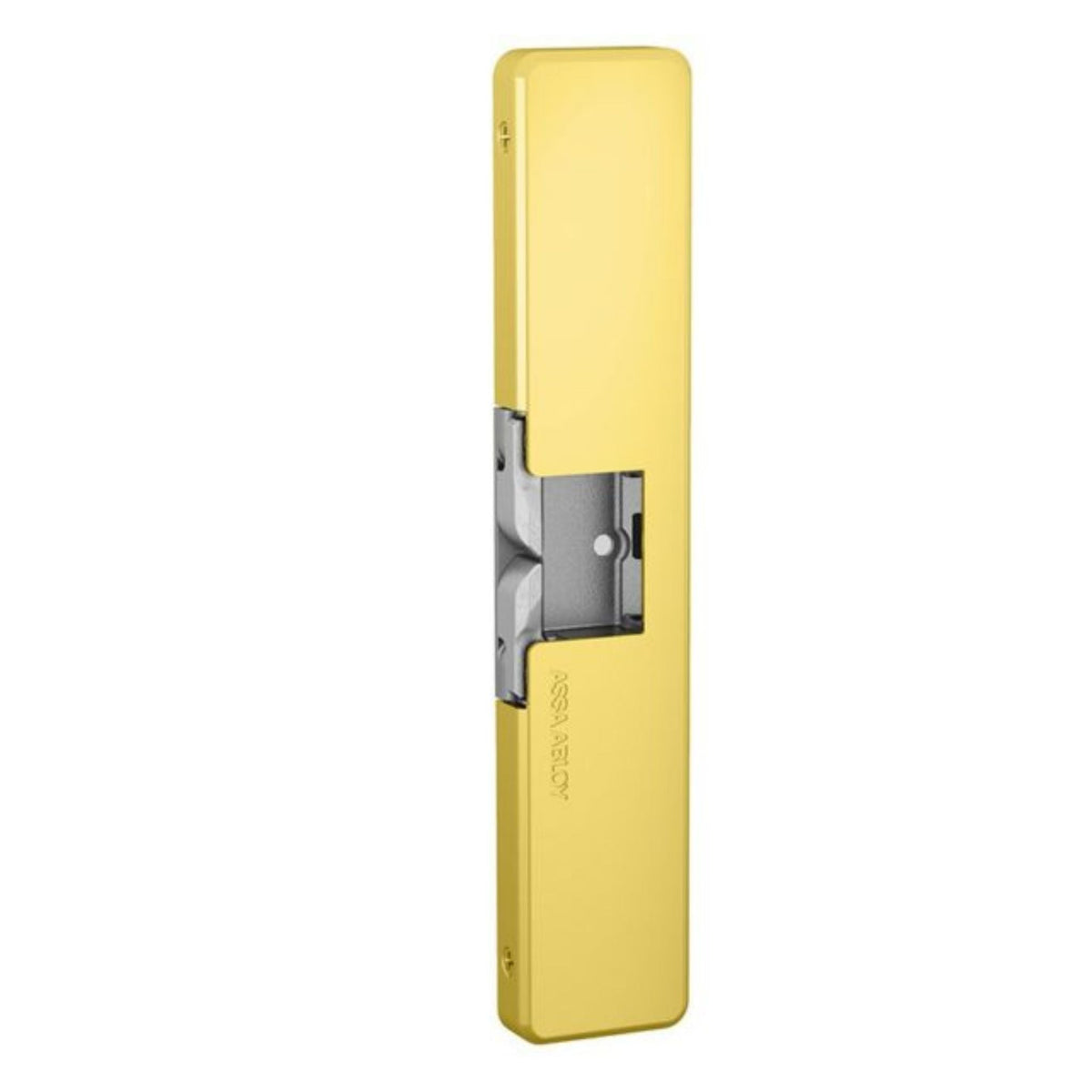

    HES 9400-606 Electric Strike, Satin Brass

    SKU-HES-9400-606

    HES 9400-606 Surface Mounted Electric Strike: The 9400 works with rim exit devices up to 1/2" throw latchbolt.

    The HES 9400 Surface Mounted Electric Strike is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

    The Slim-Line, Surface Mounted Solution!
