The HES 9400 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics fo an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in eight finishes.

Features

  • Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
  • Stainless steel construction
  • Tamper-resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Non-handed
  • Interchangeable faceplates and accessories
  • Field replaceable components
  • Fully finished faceplate, keeper, case and trim
  • Field adjustable integrated shim
  • Strike body depth 1-5/8" (41.3mm)
  • Frame Application: Metal & Wood
  • Finish: Black Suede Powder (BSP) finish
Specification Data
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL294 listed
  • UL305 listed
  • RoHS compliant
  • Dual voltage 12/24VDC
  • 450 mA at 12VDC/250 mA at 24VDC

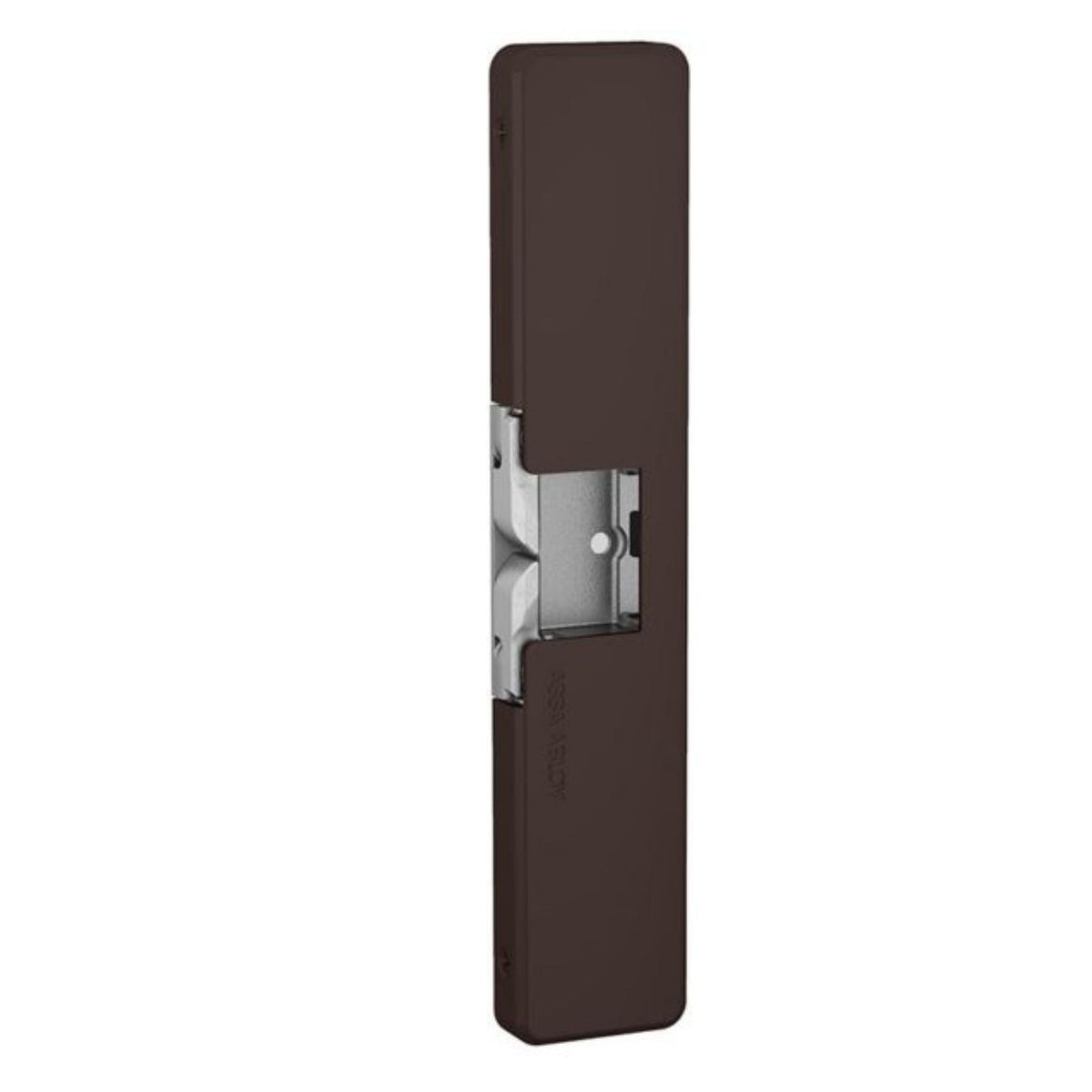

    HES 9400-BSP-LBM Electric Strike, Latchbolt Monitor, Black Suede Powder

    SKU-HES-9400-BSP-LBM

    HES 9400-BSP-LBM Surface Mounted Electric Strike: The 9400 works with rim exit devices up to 1/2" throw latchbolt.

    The HES 9400 Surface Mounted Electric Strike is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

    The Slim-Line, Surface Mounted Solution!
