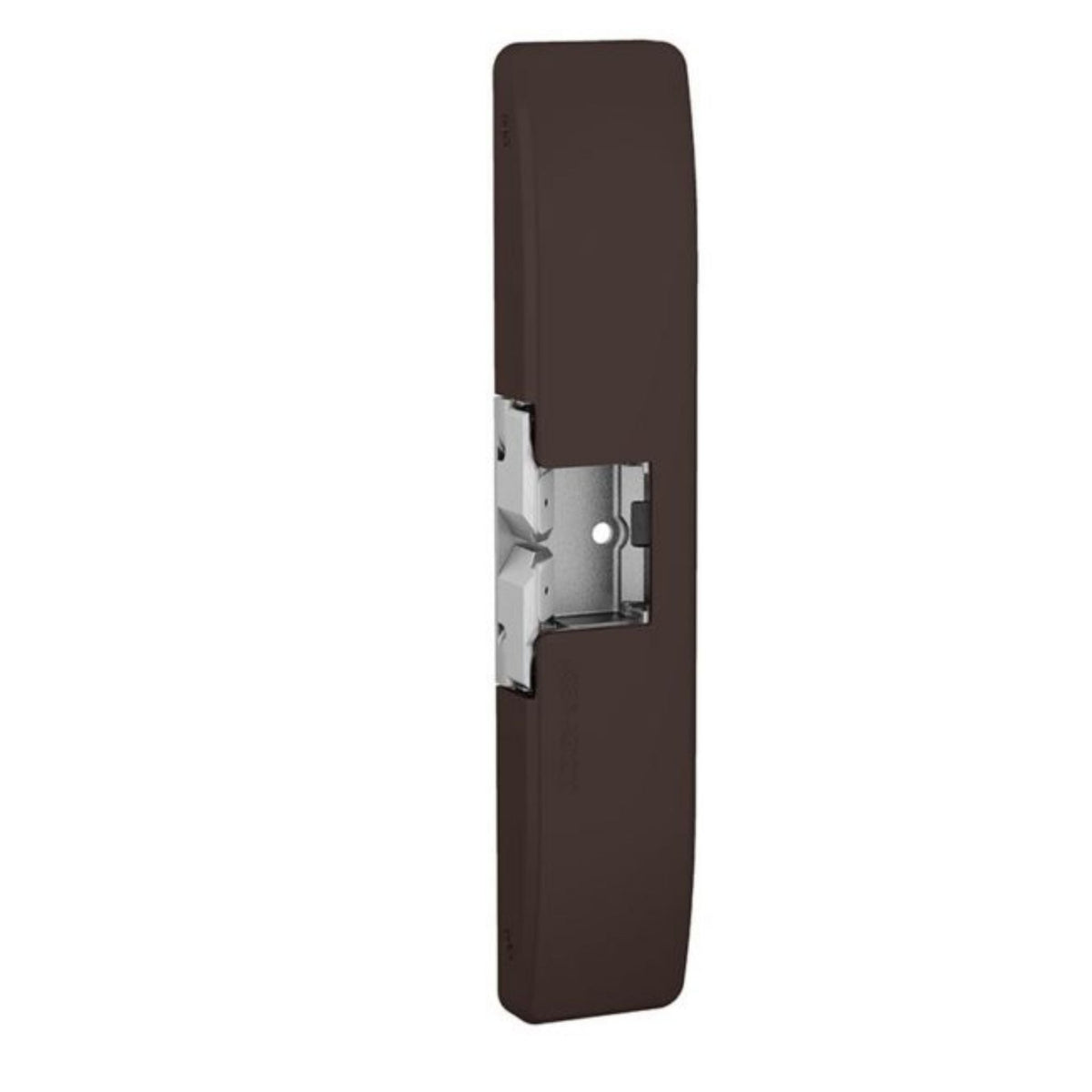

The HES 9500 Series Electric Strike is a three hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.

Features

• Latchbolt Strike Monitor - Monitors the locking mechanism in the electric strike is locked and the door will not open
• Installs in metal and wood frames
• Wood screws not provided
• Separate base and decorative cover for easy adjustments
• Stainless steel construction

• Tamper-resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Horizontal adjustability
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4" [19mm] Pullman latch
• Frame Application: Metal & Wood
• Finish: Oil Rubbed Bronze (613) finish

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL294 listed
• UL305 listed
• RoHS compliant
• Dual voltage 12/24VDC
• 450 mA at 12VDC/250 mA at 24VDC
