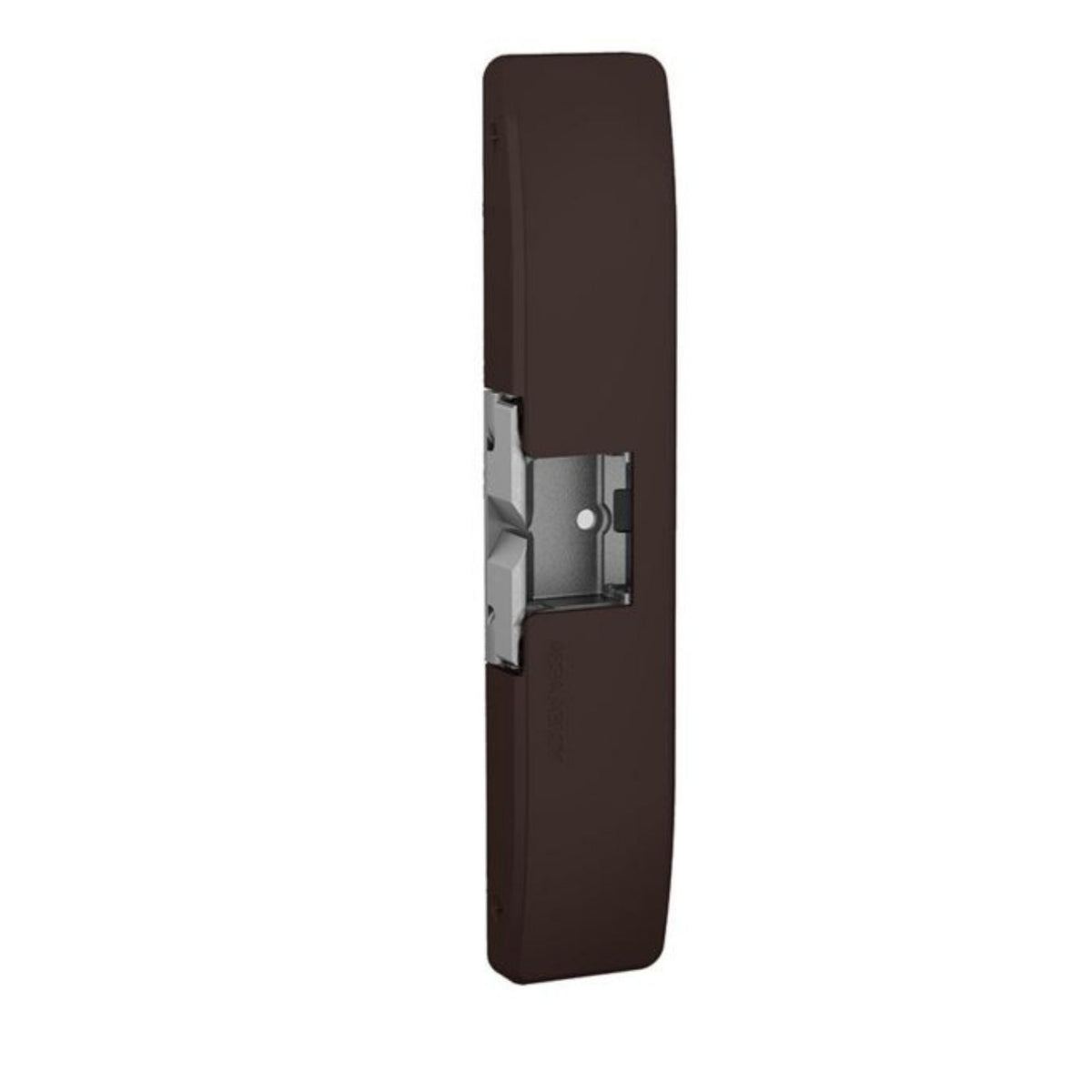

The HES 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.

Features

• Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
• Installs in metal and wood frames
• Wood screws not provided
• Separate base and decorative cover for easy adjustments
• Stainless steel construction

• Tamper-resistant
• Static strength 2,000 lbs.
• Dynamic strength 120 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Horizontal adjustability
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4" [19mm] Pullman latch
• Frame Application: Metal & Wood
• Finish: Black Suede Powder (BSP) finish

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL294 listed
• UL305 listed
• RoHS compliant
• Dual voltage 12/24VDC
• 450 mA at 12VDC/250 mA at 24VDC
