  • Fail secure (standard)
  • No cutting or altering of the jamb required
  • Accommodates up to 5/8" latchbolt
  • Fits standard ANSI 4-7/8" strike cutout
  • Motorized, no solenoids
  • Fully concealed installation
  • Maintains deadlatch function at all times
  • Continuous duty
  • Releases under pre-load
  • Latch status sensor is standard (SPDT)
  • Strike body depth 1-7/8" [47.6mm]
  • Finish: Oil Rubbed Bronze (613) finish
Specification Data
  • 12 VDC (continuous duty) – Inrush – 4 Amps – Standby Current – 600 mA
  • 1500 lbs [680kg] static
  • -20? to 125? F [-29? to 52? C]
  • UL 10C Listed
  • NFPA-252 fire door compliant

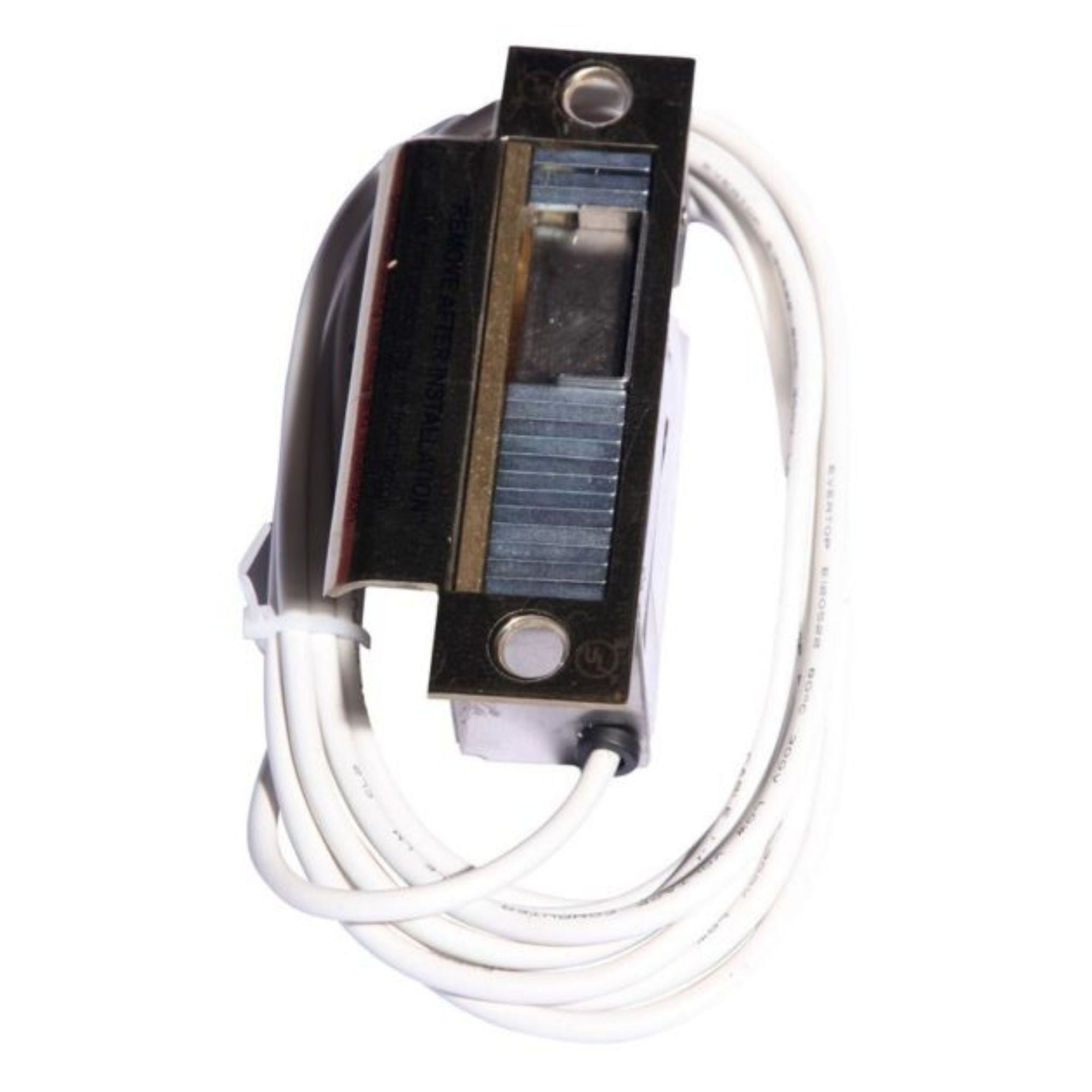

    Securitron MUNL-12-613 UnLatch Mortise Electric Strike (12VDC), Oil Rubbed Bronze


    Securitron MUNL-12 Mortise UnLatch Strike: The universal compact, high performance, no cut electromechanical motorized strike for use with mortise locksets without deadbolts.

    The Securitron MUNL Mortise UnLatch Strike is designed for easy installation, the Securitron MUNL is capable of releasing under preload conditions and accommodates latchbolts up to 3/4" [19mm] throw. Strong enough to withstand windstorm conditions, the Securitron MUNL is the UL listed, fire rated electric strike that includes lock monitoring standard, provides ANSI/BHMA Grade 1 holding power and includes field adjustability for latch and deadlatch positions.
